Sinopec L-HG Hydraulic Guide Oil 32#Excellent low pressure Guide rail lubricatin
Packaging specifications：170 kg
Order Hotline：+86 18624936708
Excellent anti-wear properties, reducing wear Excellent antioxidant stability, rust and corrosion resistance Excellent viscosity-temperature characteristics, providing excellent high and low temperature performance

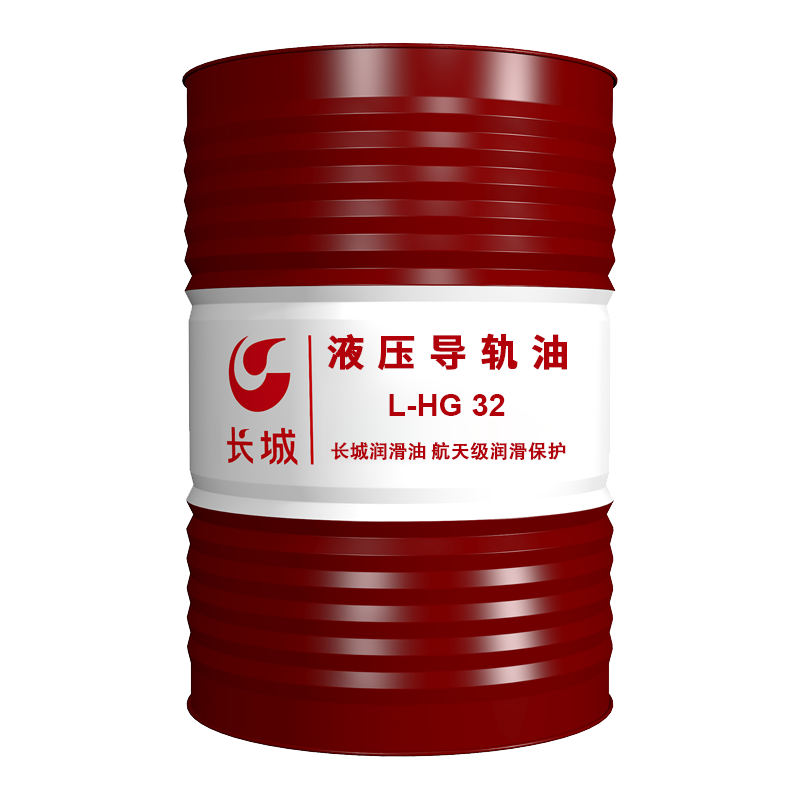

L-HG Hydraulic Guide Oil 32#
Overview:
Great Wall L-HG Hydraulic Guide Oil is blended with paraffin-based mineral base oil and carefully selected additives. It is suitable for lubricating combined hydraulic and guide rail systems. This product is available in grades 32, 46, 68, and 100 based on kinematic viscosity at 40°C.
Performance:
◎ Excellent viscosity-temperature characteristics, providing excellent high and low temperature performance
◎ Excellent stick-slip properties, preventing "slip" (slipping)
◎ Excellent anti-wear properties, reducing wear
◎ Excellent antioxidant stability, rust and corrosion resistance
◎ Excellent rubber compatibility, effectively protecting sealing materials
Technical Specifications:
This product complies with the following specifications:
◎ GB 11118.1 L-HG
This product has obtained the following OEM certifications:
◎ Cincinnati P53 (L-HG 32)
Applications:

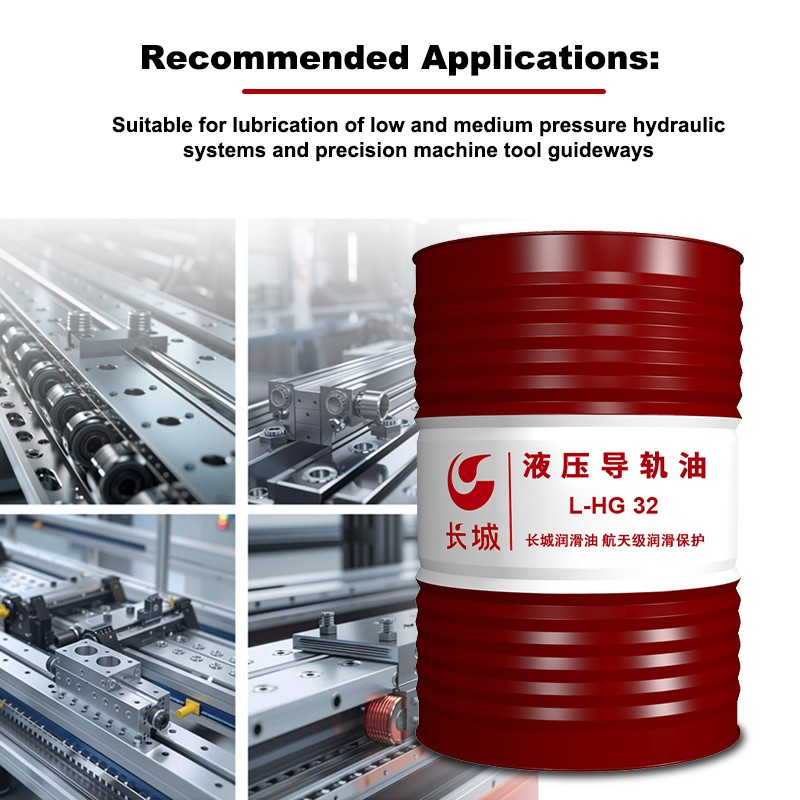

◎ Suitable for lubrication of low- and medium-pressure hydraulic systems and precision machine tool guide rails.
Parameters：
| Item | L-HG Hydraulic Guide Oil | |||
Viscosity grade （GB/T 3141) | 32 | 46 | 68 | 100 |
| Kinematic viscosity (40℃), mm2 /s | 30.46 | 47.2 | 63.62 | 97.1 |
| Flash point (open cup), °C | 226 | 230 | 242 | 272 |
| Pour point, C | -15 | -15 | -15 | -15 |
Viscous-slip property (difference in dynamic and static friction coefficients) | 0.077 | 0.072 | 0.067 | 0.0572 |
