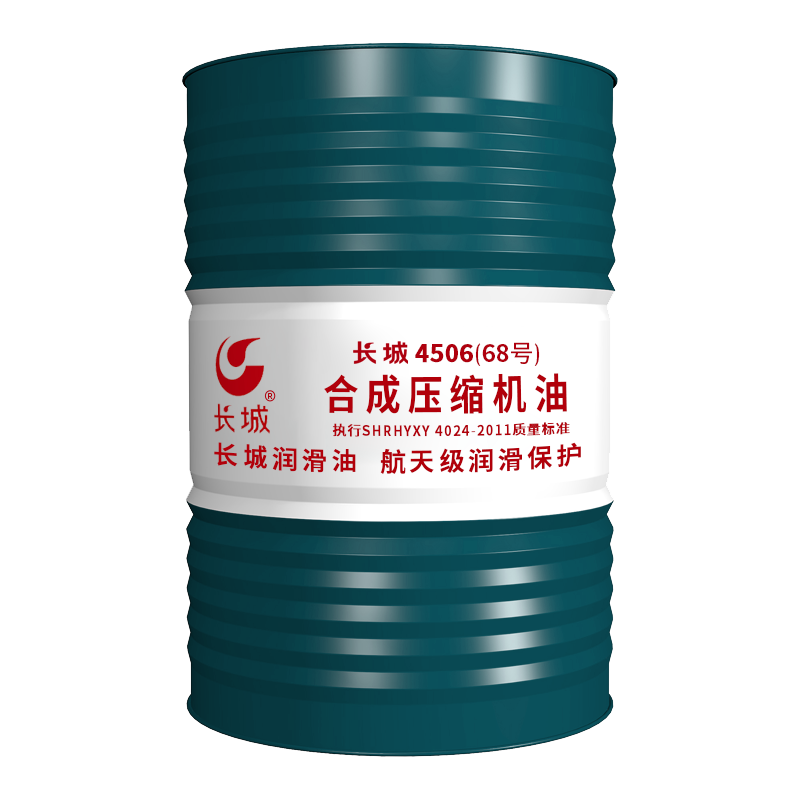

Sinopec 4506 VG 68 Synthetic Compressor Oil 200 L
Packaging specifications：170 kg
Order Hotline：+86 18624936708
Operating Temperature Range: Rotary compressors: -50°C to 120°C; Reciprocating compressors: -40°C to 200°C, with short-term operation up to 220°C.
4506 Synthetic Compressor Oil
Overview:
Sinopec 4506 Synthetic Compressor Oil 68# is refined using a synthetic base oil and a variety of additives for extreme pressure, antioxidant, and corrosion resistance.
Performance Features:
◎Excellent thermal and oxidative stability, preventing lubricant deterioration at high temperatures
◎Good material compatibility, preventing leaks during system operation
◎Excellent thermal conductivity, reducing compressor operating temperatures
◎Excellent resistance to high-temperature coking and carbon deposits, enhancing compressor safety under high-temperature conditions
◎ Excellent high- and low-temperature performance, ensuring normal system operation over a wide temperature range
◎ Excellent lubricity, protecting the compressor and reducing wear
◎ Excellent overall performance, ensuring a compressor system life of 6,000 to 8,000 hours.
Technical Specifications:
This product meets the following specifications:
◎ ISO 9001/DAJ
◎ Shanghai CompAir Compressor Co., Ltd. Initial Compressor Oil.
Applications:
◎Widely used for lubrication of small, medium, and large single-stage or multi-stage reciprocating and rotary air compressors used in the steel, cement, chemical, machinery, and electronics industries, particularly for centrifugal and screw compressors.
◎ Operating Temperature Range: Rotary compressors: -50°C to 120°C;
Reciprocating compressors: -40°C to 200°C, with short-term operation up to 220°C.
Parameters:
Item | Sinopec 4506 Synthetic Compressor Oil | |||
| 32 | 46 | 68 | 100 | |
Kinematic viscosity (at 40℃), mm² /s | 31.1 | 46.5 | 64.7 | 97.7 |
| Viscosity index | 130 | 127 | 138 | 138 |
| Acid value, mgKOH/g | 0.16 | 0.20 | 0.17 | 0.19 |
| Flash point (open cup), °C | 252 | 260 | 270 | 272 |
| Freezing point, °C | <-60 | -58 | -56 | -48 |
Anti-emulsification performance, min | 5 | 5 | 6 | 5 |
| Copper sheet corrosion (at 100℃ for 3 hours), grade | 1b | 1b | 1b | 1b |
| carbon residue,% | 0.02 | 0.02 | 0.02 | 0.02 |
Precautions:
◎ Do not mix with other lubricants. If mixing is necessary, conduct a compatibility test first.
◎ Immediately seal the cap after use to prevent the ingress of moisture, dust, and other impurities.
◎ Before using in lubricating areas that come into contact with non-metallic materials such as rubber, plastic, and paint, conduct a material compatibility test.
◎Darkening of the color during use due to exposure to light or prolonged high temperatures is normal and does not affect performance.
