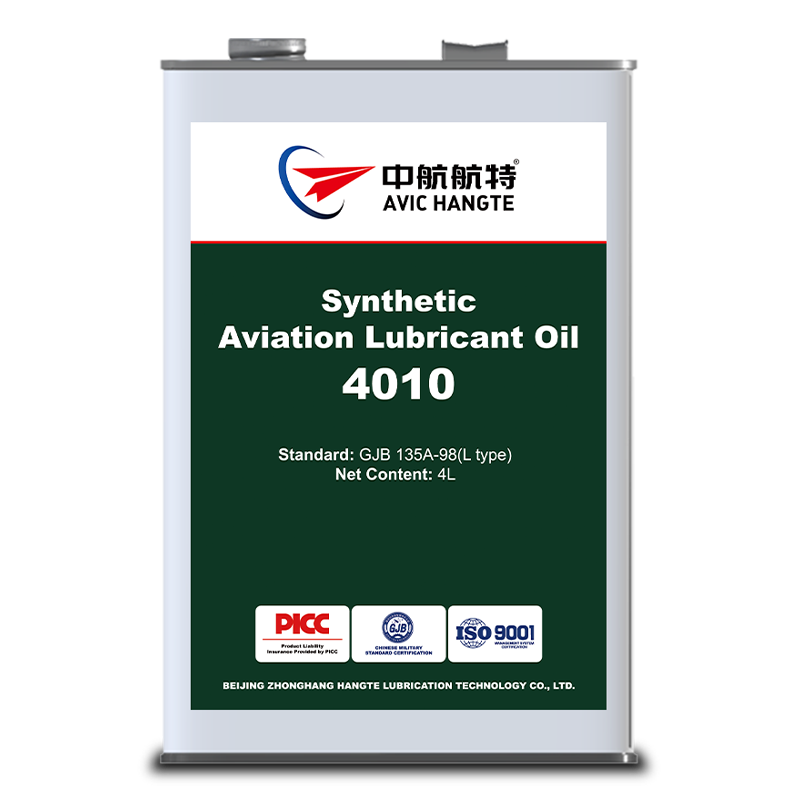

AVIC Hangte 4010 Aviation Lubricant 3.5 kg/4 L
Packaging specifications：3.5 kg/4 L
Order Hotline：+86 18624936708
It is a low-viscosity synthetic oil with a usage temperature range of -54°C to +200°C. It complies with the 3rd grade oil standard specification in the US military standard MIL-PRF-7808L.
AVIC Hangte 4010 Aviation Lubricant
Overview:
AVIC Hangte 4010 Aviation Lubricant is refined using synthetic base oils and a variety of high-efficiency additives. Complying with the US military standard MIL-PRF-7808L, Grade 3 oil, it is a low-viscosity synthetic aircraft engine lubricant. It offers superior high and low-temperature performance and oxidation resistance compared to 4109 aviation lubricant, making it suitable for lubrication needs in aircraft engines operating under extreme conditions. Its applicable temperature range is -54°C to +200°C, with short-term operation up to 220°C.
Performance Features:
◎Excellent high-temperature performance, meeting the requirements of all-weather, all-airspace aircraft operation.
◎Excellent thermal oxidation resistance, ensuring extended bearing life.
◎Excellent material compatibility and corrosion resistance.
◎Low foaming tendency and excellent lubrication properties, providing adequate lubrication under various conditions.
Application:

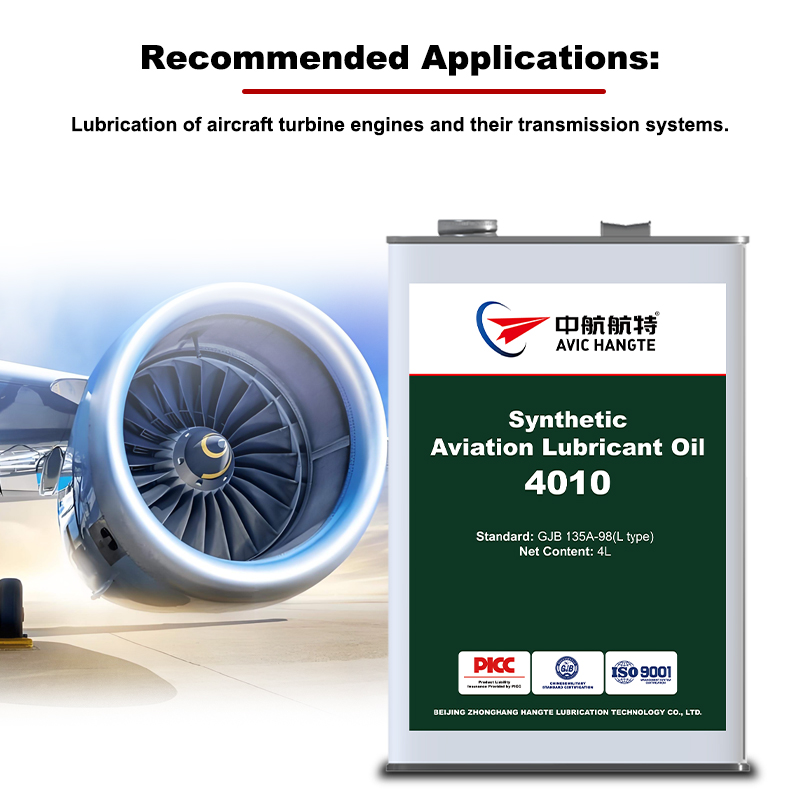

Suitable for aircraft engines such as turbojets, turbofans, and turboshafts, as well as ground-based industrial gas turbine engines.
Implementation Standard:
GJB 135A-98 (L-type).
| Analytical Item | Quality Indicators | Test Results |
| Appearance | When observed through light, the oil should be uniform and transparent, not turbid, and free of suspended matter and other impurities. | Acceptable |
| Neutralization Value, mgKOH/g | Not greater than 0.3 | 0.18 |
| Kinematic Viscosity (100°C), mm²/s | Not less than 3.0 | 3.246 |
| Kinematic Viscosity (40°C), mm²/s | Not less than 11.5 | 13.70 |
| Kinematic Viscosity (-51°C), mm²/s | Not greater than 17000 | 10760 |
Low-Temperature Stability (-54°C) After 35 minutes of standing, mm²/s | Not greater than 17000 | 16342 |
| After 3 hours of standing, mm²/s | Not greater than 17000 | 16152 |
| Kinematic Viscosity Change after 3 hours, % | Not greater than 6.0 | -1.16 |
| After 72 hours of standing, mm²/s | Not greater than 17000 | 16358 |
| Kinematic viscosity change after 72 hours, % | not exceeding 6.0 | 0.10 |
| Flash point (open cup), °C | not less than 210 | 220 |
| Evaporation loss (205°C, 6.5 hours), % (m/m) | not exceeding 30.0 | 24.95 |
Precautions:
◎ Follow relevant safety procedures when handling.
◎ Store away from high temperatures, sources of ignition, and flammable materials.
◎ The storage area should be well ventilated.
Specifications:
3.5kg/drum, 15kg/drum, 170kg/drum.
