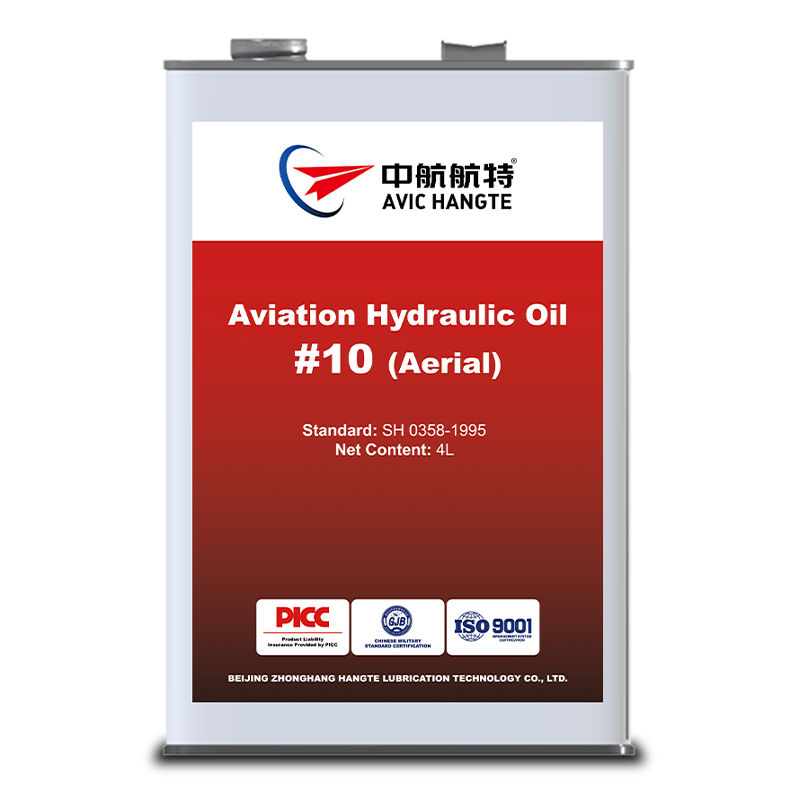

AVIC Hangte 10# Aviation Hydraulic Fluid ( YH-10 Red Oil）(Aircraft Use) 4 L
Packaging specifications：3.5 kg
Order Hotline：+86 18624936708
Freezing point: -72°C. Excellent low-temperature fluidity and viscosity stability, capable of maintaining flow even in extremely low temperatures.
AVIC Hangte No. 10 Aviation Hydraulic Fluid (For Aircraft Use)
Overview:
AVIC Hangte No. 10 Aviation Hydraulic Fluid (also known as YH-10 Red Oil) is made from highly refined base oils and premium additives. It is primarily used as the working fluid for aircraft hydraulic systems and exhibits excellent low-temperature performance, with a pour point no higher than -70°C.
Performance Characteristics:
◎ Excellent low-temperature fluidity, capable of maintaining fluidity in extremely low temperatures
◎ Excellent viscosity-temperature performance, maintaining stable viscosity at varying temperatures
◎ Good chemical stability and oxidation resistance, extending the service life of the fluid and the system
◎ High cleanliness, reducing system contamination and improving system reliability
◎ Excellent corrosion and rust resistance, protecting metal components from corrosion
Applications:
Primarily used in the main and auxiliary hydraulic systems of aircraft such as fighter jets and helicopters, including control systems for landing gear, speed brakes, deflectors, and flaps. It is also suitable for other high-performance ground hydraulic systems, such as those used in rocket and military transport vehicles, military radars, military tanks, shipbuilding, precision CNC machine tools, and large ship cranes.
Implementation Standard:
SH 0358-1995
| Test Item | Quality Index | Test Results |
| Density (20°C), kg/m³: Not more than | 850 | 835 |
| Appearance | Red, transparent liquid | Red, transparent liquid |
| Kinematic Viscosity, mm²/s | 10 | 10.45 |
| Corrosion (70±2°C, 24h), Level: Not more than | 2 | 1b |
| Acid Value, mgKOH/g: Not more than | 0.05 | 0.016 |
| Flash Point (Open), °C: Not less than | 92 | 101 |
| Pouring Point, °C: Not more than | -70 | -72 |
Precautions:
◎ Follow relevant safety procedures during use.
◎ Avoid contact with skin and eyes.
◎ Store away from high temperatures, sources of fire, and flammable materials.
◎ Ensure the storage area is well ventilated to prevent accumulation of oil vapors.
Specifications:
3.5kg/barrel, 15kg/barrel, 170kg/barrel
