AVIC Hangte YH-12 Aviation Hydraulic Fluid 15 kg/17 L
Packaging specifications：15 kg/17 L
Order Hotline：+86 18624936708
Low corrosion resistance, suitable for precision hydraulic equipment. Operating temperature range: -60 °C to 100 °C.

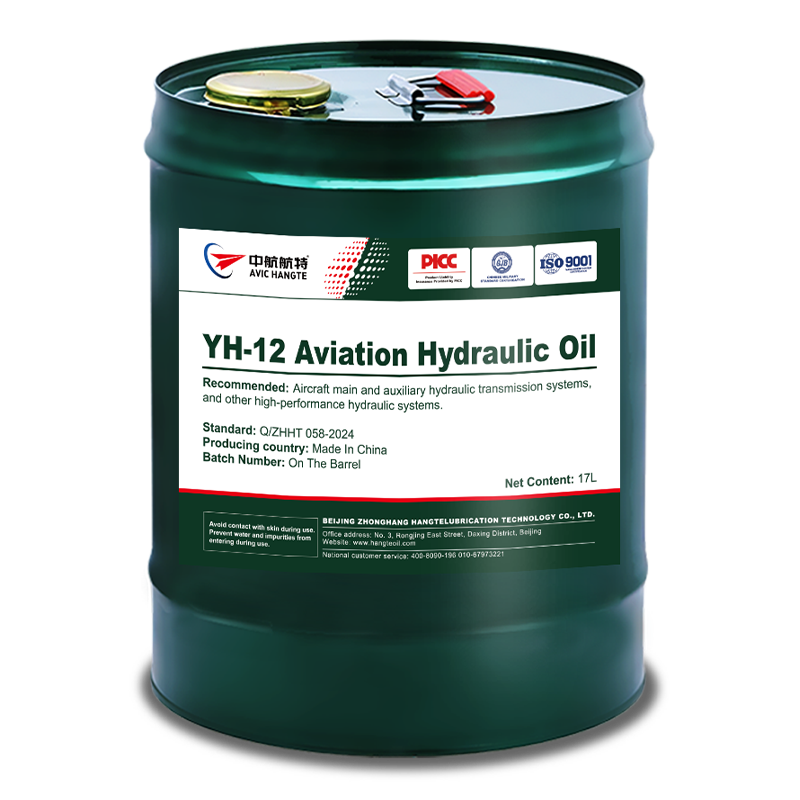

AVIC Hangte YH-12 Aviation Hydraulic Fluid
Overview:
AVIC Hangte YH-12 Aviation Hydraulic Fluid is refined from high-quality base oils and multifunctional additives. This product is a high-performance aviation hydraulic fluid primarily used as the working fluid for aircraft hydraulic transmissions, but can also be used as the working fluid for other high-performance hydraulic systems.
Performance Characteristics:
◎ Excellent viscosity-temperature stability ensures stable operation of hydraulic systems at varying temperatures
◎ Excellent oxidation stability extends oil life and reduces sludge and deposit formation
◎ Excellent anti-wear and shear resistance protects hydraulic system components and reduces wear
◎ Low corrosion resistance, suitable for precision hydraulic equipment
Scope of Application:
Suitable for aircraft main and auxiliary hydraulic systems, aircraft hydraulic transmissions, and other high-performance hydraulic systems.
Implementation Standard:
Q/ZHHT 058-2024
Typical Data:
Item | Quality Indicator | Test Results |
Appearance | Red transparent liquid | Visual inspection |
Kinematic viscosity, mm²/s 150°C: not less than 50°C: not less than -40°C: not more than -54°C: not more than | 3 12 600 3000 | GB/T 265 |
Acid value, mgKOH/g: not more than | 0.05 | GB/T 264 |
Flash point (open), °C: not less than | 100 | GB/T 267 |
Pour point, °C: not more than | -60 | GB/T 510 |
Moisture content, mg/kg: not more than | None | GB/T 260 |
Mechanical impurities, % | None | GB/T 511 |
Water-soluble acids or bases | None | GB/T 259 |
Precautions:
◎ Follow relevant safety procedures when handling.
◎ Avoid contact of oil with skin and eyes.
◎ Store away from high temperatures, sources of ignition, and flammable materials.
◎Storage areas should be well ventilated to prevent the accumulation of oil vapor.
Specifications:
800g/barrel, 3.5kg/barrel, 15kg/barrel, 170kg/barrel.
