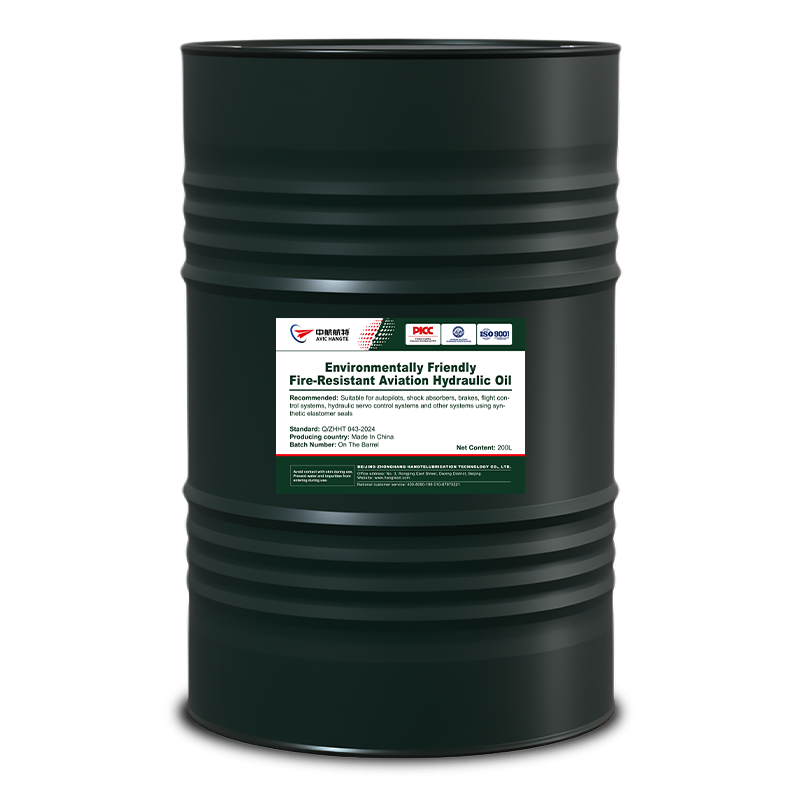

AVIC Hangte Environmentally Friendly Fire-Resistant Aviation Hydraulic Fluid 170
Packaging specifications：170 kg/200 L
Order Hotline：+86 18624936708
Pour point: -60°C, Flash point: 218°C. Operates reliably in cold conditions, ensuring smooth operation and quick response time.
AVIC Hangte Environmentally Friendly Fire-Resistant Aviation Hydraulic Fluid
Overview:
AVIC Hangte Environmentally Friendly Fire-Resistant Aviation Hydraulic Fluid is a synthetic hydrocarbon aircraft hydraulic fluid with enhanced fire resistance, a high flash point, excellent oxidation and thermal stability, low volatility, and environmental friendliness. It can be used in aircraft, weaponry, and missile systems operating in temperatures ranging from -40°C to +205°C.
Performance Features:
◎Excellent fire resistance reduces the risk of fire during high-temperature operation.
◎High oxidation stability and corrosion resistance prevent rust and corrosion, extending fluid life.
◎Reliable operation in cold conditions, ensuring smooth operation and fast response times.
◎Strong anti-wear protection protects critical hydraulic components from wear, improving system durability and reliability.
◎Wide operating temperature range ensures effective operation over a wide temperature range.
Applications:

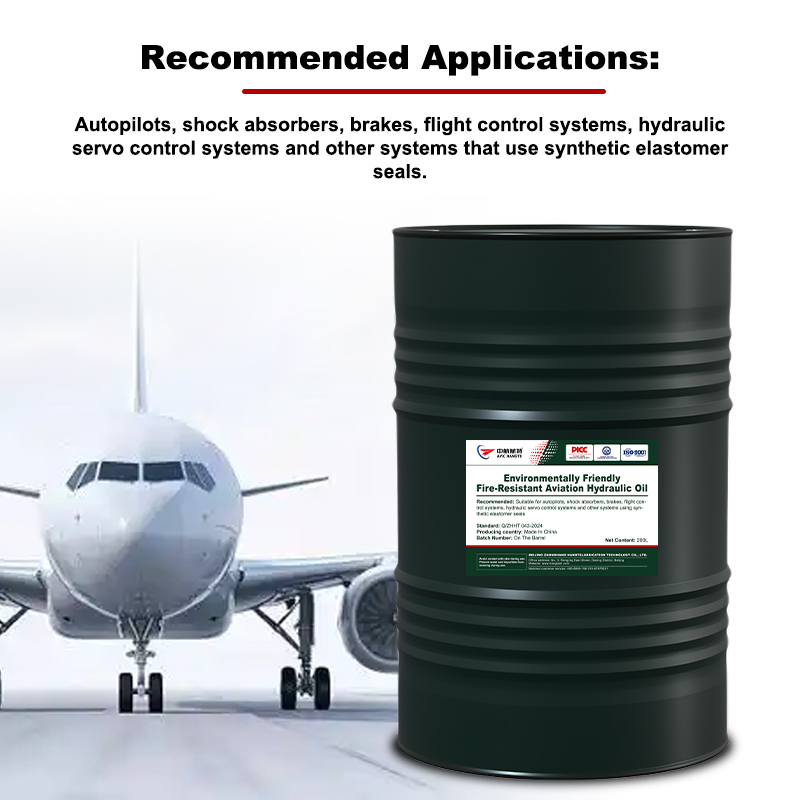

Suitable for autopilots, shock absorbers, brakes, flight control systems, hydraulic servo control systems, and other systems using synthetic elastomer seals.
Implementation Standard:
Q/ZHHT 043-2024
Typical Data:
Test Item | Quality Indicator | Test Result |
Kinematic Viscosity, mm/s 100°C: Not less than 40°C: Not less than -40°C: Not more than | 3.45 14 2500 | 3.53 14.3 2059 |
Density (20°C), kg/m³ | Reported | 0.851 |
Copper Strip Corrosion (135°C, 72h: Not more than | 2e | 2d |
Flash Point (Closed Cup) °C: Not less than | 205 | 218 |
Pour Point, °C: Not more than | -50 | -60 |
Fire Point, °C: Not less than | 240 | 251 |
Precautions:
◎ Follow relevant safety procedures when handling.
◎ Store away from high temperatures, sources of fire, and flammable materials.
◎ Ensure the storage area is well ventilated.
Specifications:
3.5kg/barrel, 15kg/barrel, 170kg/barrel
