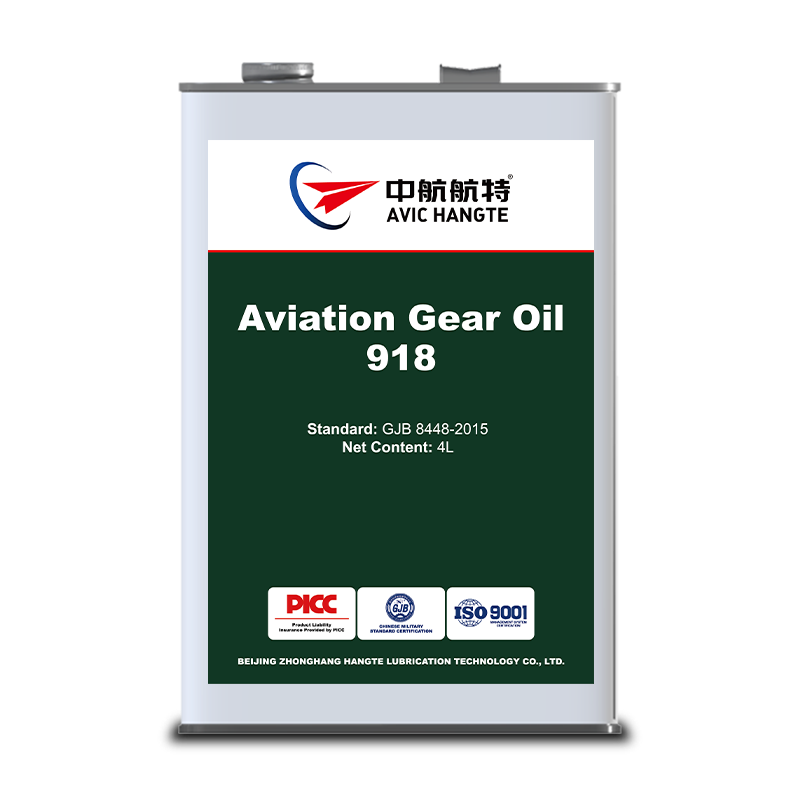

China AVIC Hangte 918 Aviation Gear Oil 3.5 kg/4 L
Packaging specifications：3.5 kg/4 L
Order Hotline：+86 18624936708
Pour point: -43°C, Flash point: 230°C. Excellent extreme pressure and anti-foaming properties; mainly used for lubricating the mid-section and tail reduction gears of helicopters.
AVIC Hangte 918 Aviation Gear Oil
Overview:
AVIC Hangte 918 Aviation Gear Oil is primarily used for lubricating helicopter intermediate reducers, tail reducers, tail drive shafts, fan drive shafts, vertical and horizontal joints, and other components. It offers excellent viscosity-temperature performance, low-temperature fluidity, rust resistance, anti-foaming properties, and extreme pressure resistance.
Performance Characteristics:
◎ Excellent low-temperature performance, with good low-temperature fluidity and viscosity-temperature properties
◎ Excellent anti-wear properties, containing extreme pressure additives to effectively reduce gear wear
◎ Excellent wide operating temperature range, suitable for use in areas with large day-night and winter-summer temperature swings
Recommendation:
Lubricates helicopter transmission systems and can replace No. 18 hyperbolic gear oil.
Implementation Standard: GJB 8448-2015.
Copper Corrosion (100°C, 3h), Level 2: Not more than 1 GB/T 5069
Mechanical Impurities, %: Not more than 0.05 0.003 GB/T 511
Moisture: Not more than trace GB/T 260
Typical Data:
Analysis Items | Quality Indicators | Test Results | Test method |
Appearance | Transparent liquid | Acceptable | Visual inspection |
Kinematic viscosity (100°C), mm²/s | 19.0-23.5 | 21.2 | GB/T 265 |
Viscosity index: Not less than | 110 | 136 | GB/T 1995 |
Pour point, °C: Not higher than | -32 | -43 | GB/T 3535 |
Temperature at which apparent viscosity reaches 150 Pa·s, °C: Not higher than | -30 | -35 | GB/T 11145 |
Flash point (open cup), °C: Not less than | 180 | 230 | GB/T 3536 |
Foaming capacity, mL/mL 24°C 93.5°C Post-24°C | Not greater than 20/0 Not greater than 50/0 Not greater than 20/0 | 10/0 20/0 10/0 | GB/T 12579 |
Copper Corrosion (100°C, 3h), Level | Not more than 2 | 1 | GB/T 5069 |
Mechanical Impurities, % | Not more than 0.05 | 0.003 | GB/T 511 |
Moisture | Not more than trace | Trace | GB/T 260 |
Precautions:
◎ Follow relevant safety procedures during use.
◎ Avoid contact of oil with skin and eyes.
◎ Store away from high temperatures, sources of ignition, and flammable materials.
◎ The storage area should be well ventilated to prevent the accumulation of oil vapors.
Specifications: 3.5kg/barrel，15kg/barrel, 170kg/barrel.
